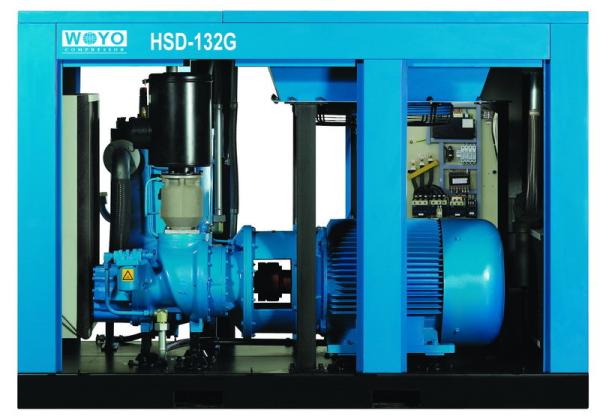

Screw Air Compressor, Direct Drive, 100hp, 380V50HZ, 220V60HZ
1, High reliability, less parts, no wearing parts, so it is
reliable operation, long life, the general screw airend design life
of 30 years.
2. Convenient operation and maintenance, high degree of automation,
operators do not need to go through a long period of professional
training, to achieve unattended operation.
3. Good power balance, no unbalanced inertia force, the machine can
work smoothly at high speed, to achieve no foundation operation.
4. Strong adaptability, with the characteristics of forced gas
transmission, volume flow is almost not affected by exhaust
pressure, in a wide range of working conditions can maintain high
efficiency, in the compressor structure without any change,
suitable for a variety of working conditions, so easy to finalize
the batch production.
Model | Power(KW) | Pressure(MPa) | Capacity(m3/min) | Pipe Diameter | Weight (kg) | Dimension(mm) |
HSD10 | 7.5 | 0.8-1.3 | 0.7-1.1 | G1/2 | 180 | 960*650*850 |
HSD15 | 11 | 0.8-1.3 | 1.0-1.7 | G3/4 | 300 | 1000*750*1000 |
HSD20 | 15 | 0.8-1.3 | 1.6-2.3 | G3/4 | 320 | 1000*750*1000 |
HSD30 | 22 | 0.8-1.3 | 2.7-3.4 | G1 | 420 | 1070*850*1260 |
HSD40 | 30 | 0.8-1.3 | 3.1-5.0 | G1 | 450 | 1070*850*1260 |
HSD50 | 37 | 0.8-1.3 | 4.7-6.4 | G1 1/2 | 600 | 1200*1000*1390 |
HSD60 | 45 | 0.8-1.3 | 5.7-7.2 | G1 1/2 | 700 | 1200*1000*1390 |
HSD75 | 55 | 0.8-1.3 | 6.7-9.4 | G2 | 920 | 1700*1200*1550 |
HSD100 | 75 | 0.8-1.3 | 9.1-12.2 | G2 | 950 | 1700*1200*1550 |
HSD125 | 90 | 0.8-1.3 | 11.4-15.2 | G2 | 1350 | 2100*1300*1650 |
HSD150 | 110 | 0.8-1.3 | 14.5-19.9 | DN80 | 2650 | 2500*1650*1900 |
HSD180 | 132 | 0.8-1.3 | 16-23 | DN80 | 2850 | 2500*1650*1900 |
HSD220 | 160 | 0.8-1.3 | 21-27 | DN80 | 4100 | 3000*1900*1950 |
HSD250 | 185 | 0.8-1.3 | 23-30 | DN80 | 4300 | 3000*1900*1950 |
HSD270 | 200 | 0.8-1.3 | 25.5-32.5 | DN100 | 5300 | 3600*2200*2200 |
HSD300 | 220 | 0.8-1.3 | 28.8-38 | DN100 | 5500 | 3600*2200*2200 |
More than 40 years of experience in theory and practice of screw
compact unit, the engineers of WOYO focus on special screw airends
and modules of green intelligent screw air compressor R&D and
manufacturing. For saving energy, reducing emission and protecting
environmental,create more value for customers in three aspects.
More green protection for the Earth.
Save the environment, ensure to provide better services and
solutions, save costs for users, and seek the largest growth space.
The main purpose is to protect and save energy, stimulate the
growth of economic productivity, comply with market demand, save
energy and reduce environmental pollution.
