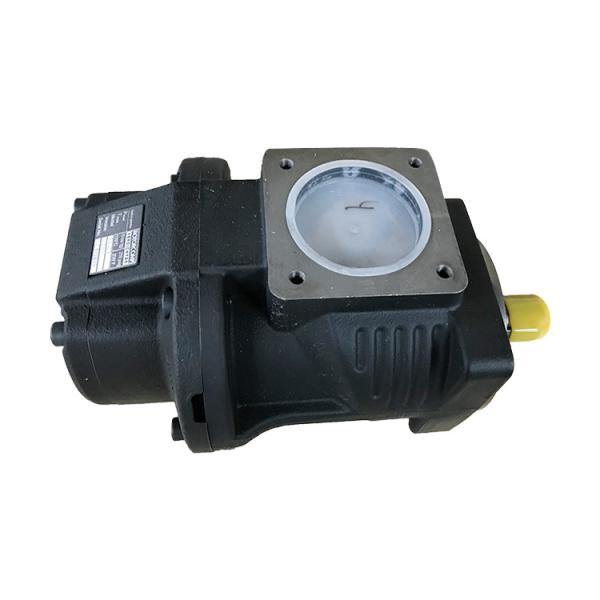

Gray Or Yellow Compact Screw Airend With Mechanical Seal For GAS
10-60hp
Compact Screw Airend Descriptions
Our screw compact units were patented on April 28, 2012 and was a
cause for celebration. This patent is a testament to our relentless
commitment to technological innovations. As the screw compact is
now covered by a patent (number ZL 200810025355), it is an oil
injected air end, which means its assembly includes the oiled
rotors and their housing.
Compact Screw Airend has been optimised with regard to safety,
compactness, simplified logistics and reduced costs. It has some
features, such as lower noise, small volume, lightweight,
simplified service snd maintenance.
Compact Screw Airend Parameters
| Type | Power Range(Hp) | Pressure(Bar) | Capacity(M3/min) | Speed Range(RPM) | Net Weight(KG) |
| GCU10 | From 7.5hp-10hp | 7-13 | 0.48-1.16 | 2950-3950 | 40 |
| | | | | | |
| GCU13 | 15hp | 7-13 | 1.15-1.8 | 4660-6100 | 75 |
| | | | | |
| GCU30 | From 20hp-30hp | 7-13 | 1.75-3.6 | 2950-5500 | 140 |
| | | | | | |
| GCU33 | From 20hp-30hp | 7-13 | 1.75-3.5 | 2850-5100 | 137 |
| | | | | | |
| GCU55 | From 40hp-60hp | 7-13 | 4.2-8.3 | 3000-6500 | 190 |
| | | | | | |
Compact Screw Airend Features
1. Built-in three sets of crude oil air separation device, to solve
the problem of oil consumption
2. More convenient maintenance
3. Smaller size and Low noise
4. We not only provide compact unit,but also can be customized
Compact Screw Airend Advantages
More than 40 years of experience in theory and practice of screw
compact unit, the engineers of WOYO focus on special screw airends
and modules of green intelligent screw air compressor R&D and
manufacturing. For saving energy, reducing emission and protecting
environmental,create more value for customers in three aspects.
More green protection for the Earth.
1. The Profile: According to WOYO and German & Italian partner
rotor profile levels of energy efficiency standards for new
optimization,also can guarantee good performance even in extreme
conditions.
2. Rotor Grinding: German Kapp and Italian SU grinding machine are
processing and checking.
3. Bearing: Use SKF or NTN high quality thrust and radial bearing.
4. Shaft seal/Sleeve: Famous German brand lip seal/sleeve.
5. Driving model: 2P 1:1 direct driven or belt driven.
Our Company Service
1. We have own developing and designing team, which ensure our own
technological and innoative products for customers.
2. For any customers who send us the samples of rotors or airend,
we will design and develop better ones based on the samples.
3. We are manufacturer, factory, so we have the ability of mass
production.
Technical Support:
Most of our WOYO products adopt German advanced technilogy, and the
producing machine are all equipped with German and Japan.
After Sale Service:
Our working team will always reply you if you need any technical
support and help, we can use video, whatsapp and other commication
tools to help
